Parcel Dimensioning

Rice Lake iDimension 100

Rice Lake’s iDimension™ 100 is the fastest solution for calculating NTEP Certified dimensions of boxes, flats, polybags, tubes and other irregular-shaped packages. iDimension 100 is designed to ensure freight compliance and deter revenue-loss from miscalculated dimensions in retail, office and shipping environments. With an operator display directly attached and no PC interface required, iDimension 100 is truly plug and play—simply open, assemble and display dimensions. Instantly.

No additional installation of software required on your PC. When connected to a network, the embedded firmware provides access to additional displays and configuration parameters Connect to a PC and communicate directly over the network via static IP or DCHP. Use our open web service interface to take advantage of additional built in features like; a low resolution image of each dimension weight and more.

Contact the factory for an up-to-date listing of 3rd party shipping and inventory management systems compatible with the iDimension Series. UPS Worldship® ready – Simply connect the iDimension Series to a USB hub. Connect your compatible scale and cable assemblies from the USB hub to the PC’s RS-232 or USB port, cables purchased separately.

Request A Quote

Rice Lake iDimension 200

iDimension 200 is designed for use on tabletops or workstations in retail, office and shipping environments. Only iDimension instantly captures and calculates the dimensions of packages, flats, polybags, tubes and irregular shapes with ease, accuracy and incredible speed.

Setup is quickly completed with an embedded program via an Ethernet connection. Simply connect iDimension as a device to your existing network, calibrate in mere minutes with the included, easy-to-use calibration tool and iDimension is ready for use. iDimension’s web service is accessed with a DHCP IP address. Its free API allows users to interface using a simple HTTP request and XML parsing method. With the API, customized functions are easily coded and integrated.

With no moving parts to service or maintain, iDimension is reliable and extremely easy to use, with a fast and straightforward installation. iDimension can be seamlessly integrated into existing work areas without changing the process fl ow or existing floor plan. Install iDimension over existing workstations to streamline operations and eliminate extra steps.

iDimension’s multiple patented, innovative sensing technology and 3D imaging work together to optimize time and throughput. iDimension is an American-made product supported by a worldwide network of service providers and is currently pending Legal for Trade approval.

Request A Quote

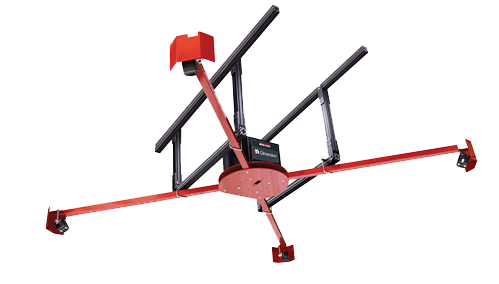

Rice Lake iDimension LTL

The dimensioning solution for operations needing more than just LTL weight data. Ideal for loading bays, warehouses, and shipping and receiving departments, iDimension LTL optimizes dimensional shipping and enhances quality assurance verification with 3D imaging technology.

Legal for Trade measurement range for maximum freight size at 96 in x 96 in x 96 in and minimum freight size at 12 in x 12 in x 12 in with 0.5-inch accuracy
360-degree access for easy pallet placement in the center of target zone
No moving parts and solid-state design
Minimal set-up and training required
Up to four low-resolution intensity images provide a bounding box to identify measurement recorded and can be configured to include time and date, scan ID, serial number, dimensions and dimensioning indications

Options

Up to two high-resolution cameras enable freight identification, damage assessment and tracking
LED lighting kit reflects a light grid on the floor, eliminating the need to paint, etch or tape the dimensioning zone
23-inch forklift operator display provides instantaneous feedback to the forklift or pallet jack operator, communicating dimensions and system status
iDimension software suite provides a customizable GUI and triggering methods, storage, logging and transfer of shipment and dimensional data and ftp images to existing ERP, TMS and WMA without the use of the iDimension web service interface API
iDimension software suite can be used to integrate the iDimension LTL with barcode scanners, floor scales and forklift scales

Request A Quote
